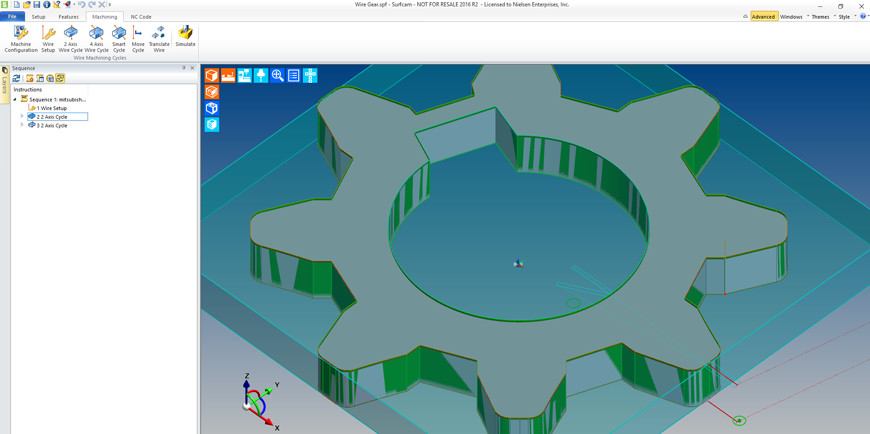

Surfcam Wire EDM
Surfcam Wire EDM provides the flexibility and confidence to manufacture 2 and 4 axis parts accurately and efficiently. Advanced functionality enables manufacture of complex shapes with irregular tapers easily.
Feature Highlights
- Intuitive graphical user interface
- Extensive range of CAD interfaces for both import and export
- Comprehensive machine and postprocessor database
- Roughing and finishing cuts easily applied to multiple punches or dies
- Multiple tagging options with auto tag removal
- Reverse cutting on roughing, finishing and tag removal passes
- No-core pocket destruction of round, irregular and tapered apertures
Intuitive operation user interface
The 2 and 4 axis machining operations give the user a choice of parameters such as machining direction, auto offsetting, lead on/off radius, tag distance, lead off distance, lead on/off technology to name just a few. Each parameter is accompanied by a bitmap giving the user additional information on how it will affect the resultant toolpath.
Multiple tagging and tag removal
In Surfcam Wire it is possible to select from several different methods of unattended machining. If your machine is equipped with automatic wire threading, then you will most likely want to run unattended as long and as often as possible. Unattended machining is performed by leaving the slugs attached while all of the preliminary cuts are taken. Numerous strategies are available to cut the part; for instance, taking all of the rough cuts before finishing, in which case all rough cuts are taken while leaving the tags attached, then the tags are removed, and finally the finish cuts are taken. Alternatively, take the rough and finish cuts while leaving the component or waste material in place and then remove the tag and finish this area.
Feature Finding
Feature Finder will automatically identify regions which require Wire EDM machining on solid models. Multiple features can be created within a single transaction plus, the feature can either be a plane 2D shape or a 3D contour. Furthermore, the feature shape will automatically update if the solid model is modified.
Post Processor Database
Surfcam Wire supports a comprehensive range of EDM machines from leading Machine Tool manufacturers including Agie, Charmilles, Brother, Fanuc, Hitachi, Makino, Ona, Sodick, Seibu and Mitsubishi. Machine Tool supplied technology data is also included for supported machine tools together with JOB/Script file output for Agie and CMD file output for Charmilles. The advanced post processors are easily configured to suit different machine models and configurations.
Automatic Cutting Strategies
Surfcam Wire offers predefined cutting strategies for automatic ordering of rough, finish and tag removal passes to accommodate common shop floor needs such as ‘attended day cutting’ and ‘unattended night cutting’.
Additional Feature Highlights Include:
- 4 Axis ‘null span’ support including reliable offsetting where small spans are eliminated
- Square, conic and constant radius corner modes for variable taper
- Separate clearance for main cuts and tag removal available
- Additional M-Codes including ‘Stop/Optional stop’, ‘Power on/off’ and ‘Wire cut/Thread’
- Automatic start hole file creation
- Incremental lead on points to help eliminate ‘witness marks’ on finished component
- Automatic approach and retract technology to allow power to be ‘ramped’ up and down gradually
