Surfcam Millturn

Surfcam Mill / Turn Overview

Multi Task Machining

Tail stocks, steady rests, sub spindles, twin turrets along with C Axis, CY Axis and B Axis have become regular features on today’s Multi-Task machine tools. With the addition of 4 and 5 axis simultaneous milling there is such a collision rich environment that programming these machines without error is more important than ever. A single mistake could be very costly. With Surfcam, programming is made simple and safe by utilizing Surfcam’s turning and milling operations in a single environment.

Feature Highlights

  • One single machining environment
  • Full machine tool and toolpath simulation
  • Reduce machine tool prove out by graphically simulating the tool path



  • Reduce component cycle time
  • Full collision checking on component parts
  • Support for Twin Spindle, Twin Turret, Pickoff spindle, C, Y & B axis machining

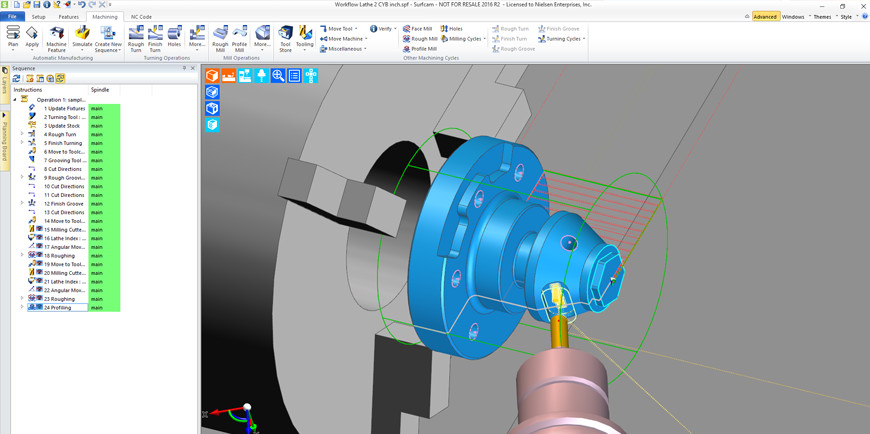

Mill/Turn Simulation

Surfcam offers a full kinematic Simulation package. All the cycles and movements are supported along with the full graphics of the machine, tails stocks and steadies meaning peace of mind as the part is fully tested before reaching the actual machine tool. The simulator being a very powerful tool in its own right offering full collision detection including many display options allowing the user full control over every aspect of the simulation. Feedback is given to the user show which commands are being simulated, this will also display which elements of the program may have caused issues. Comparison tools to show the part is machined as expected and correct before outputting to the machine tool.

4/5 Axis Simultaneous

Mill Turn machines have many uses and allow much more flexibility and capabilities not offered from other machine configurations. With this in mind many of these have multi axis, upper turrets, lower turret, CYB and Sub Spindles.

Surfcam uses the latest cutting technologies and machine cycles and with this offers 4/5 Axis simultaneous milling options. For many industries this is becoming a must have option on a mill turn machine tool.

Surfcam offers a wide range of 4 and 5 axis Operations and Maximum control in its cycles, with the Advanced 5 Axis options allowing even greater potential.

With the addition of 4 and 5 axis simultaneous milling the simulation of these machine tools and fixtures is made easier, even for experienced manufacturing engineers.


4/5 Axis Simultaneous features include:


  • Axial Milling

    This mode allows the user to perform milling operations using the C axis with Rotary options allowing programming along the Z Axis.

  • Radial Milling

    Allows the user to machine features around the diameter giving flexibility to the user to turn the component, then create the mill features using driven tooling.

  • Y Axis Milling

    The Y axis milling capabilities allows the engineer more control over the toolpath creation and CNC code output. Surfcam supports plane switching where available on the machine tool and keeps the CNC code to a minimum by outputting arcs as required.

B Axis Head Support

In a Mill Turn environment Surfcam fully supports the use of B Axis head work whether working on single spindle or sub spindle machines.


Surfcam for B Axis lathes offers the following main features:
  • B Axis positioning on upper turret

    allowing more precise and varied approaches to Mill/Turn parts giving the engineer a more flexible approach to programming complex components.

  • B Axis tilt

    The B Axis can be programmed to tilt to any number of angles to allow the many milling options available to tackle any number of features such as Faces, Pockets and Holes.

  • B Axis machining on both the main and sub spindles

    maximizing productivity by allowing optimum machine performance. These features are also supported by our Full Kinematic Simulator with collision detection when using for 4/5 Axis Simultaneous work. This provides accurate feedback of the part being cut before release to the actual machine.

Upper/Lower Turret 4 Axis Turning

The Four Axis turning option in Surfcam allows major advantages and functionality which is not always easily achieve at the machine control. Surfcam programming techniques allow you to use more than one turret at the same time in the mill turn programming environment. This means you can use two fixed cutting tools in the same cycle by using a number of Four Axis commands from the Cycles menu.


Surfcam supports the use of Upper and Lower Turret configurations and will support simulation of these including features such as:
  • Mirrored Turning

    Surfcam functionality will program turret movements which are mirrored about a plane on the Z axis and shows the toolpaths lying on the opposite side of the Z plane. The mirror cycle is a very powerful command that will allow various mirrored operation to be performed, such as, a right and left handed turning tool to action a Rough Turn and also Back Turn simultaneously. Turret synchronization will also be include where required.

  • Balanced Turning

    Another of Surfcam’s many features are balanced cycles. The Upper and Lower turrets work opposite each other about the Z axis. These cycles have an additional parameter called Z Lead. Using a value here instructs the currently active turret to cut in front of the other turret by the Z Lead distance allowing increased and improved metal removal. This cycle is automatically synchronised for optimum performance.

  • Synchronised Turrets

    A feature often needed by engineers is Synchronization between Upper and Lower Turrets. Surfcam performs this function with ease. Use of wait commands simplifies the synchronization of the Upper and Lower turrets when wanting to use these independently.

    The synchronization function is a major requirement in order to perform start and stop procedures with the upper and lower turrets and maximize efficiency in cycle. Surfcam tvisibly defines these operations in the manufacturing sequence and none productive time is clearly shown in the sequence time line.
